all-sun test & measurement equipments >> Digital Multimeter >> EM3672, DIGITAL MULTIMETER


Sales Support, Phone: (86)0596-2161506, Email: DF@e-sun.cn ┇ Please contact us for details

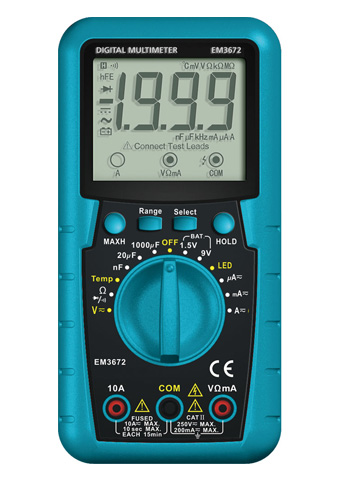

Picture of all-sun EM3672
Model:

EM3672

DIGITAL MULTIMETER Features

● Large LCD display with input connection indicator
● 3 1/2 digit LCD display for multimeter function
● Automatic polarity indication
● MAX recording mode
● Data-hold mode
● Overload protection
● Auto/manual power off
● Low battery indication
● 2 fuses protection
● LED test function
● Autorange mode and manual range mode

Specifications

EM3672, SPECIFICATION
Voltage DC: 200m/2/20/200/250V
Voltage AC: 2/20/200/250V
Current DC: 200μ/2000μ/20m/200m/2/10A
Current AC: 200μ/2000μ/20m/200m/2/10A
Resistance: 200/2k/20k/200k/2M/20MΩ
Capacitance: 20n/200n/2μ/20μ/200μ/1000μF
Temperature: -20~1000°C / 0~1800°F
LED: Operating current is about 15mA
Battery test: 1.5V~48V(1.5/3/6/9/>12V)
Continuity: Less than 30Ω, more than 100Ω
Diode Chec: approx. 1.5V

Power Supply: 9V(6F22) battery ×1pc
Dimensions: 156×76×50 mm
Weight: Approx. 185g(Without battery)

Accessories
