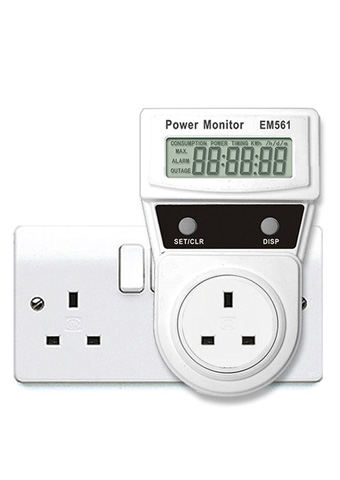

EM561 can be used to measure the average power and energy consumption of electrical appliance and can be used for energy saving evaluation. For any load (resistive, capacitive or inductive load), the Power Monitor can guarantee the accuracy of ±2% of reading for dynamic average power readings.
EM561, SPECIFICATION
Power Monitor Input:
(Rated Voltage: 220V AC, Max. Current: 10A)
Power Monitor Output:
(Rated Voltage: 220V AC, Max. Current: 10A)
Accuracy:
(±2% of reading (for dynamic average power readings only)
Min. Start Current: 20mA
Average Power:
(Minimum Resolution: 10W, Max. Reading: 2.20kW)
Max. Total Energy Consumption Reading: 9999.99
Max. Accumulative Power On Time Readin:
(9999 hours plus 59 minutes)
