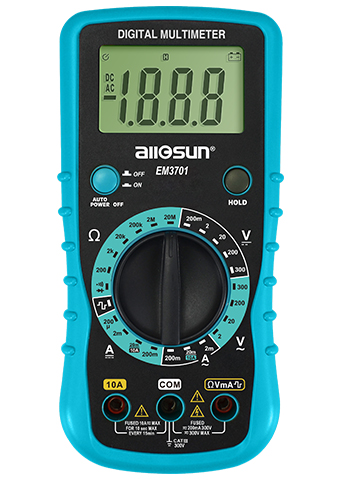

Picture of all-sun EM3701
Model: EM3701

DIGITAL MULTIMETER


Features

● Squarewave Output
● Data Hold
● Polarity Indication
● Overrange Indication
● Overload Protection
● Automatic Power-off
● Continuity Test

Specifications

DC Voltage:200mV/2V/20V/200V/300V
AC Voltage:2V/20V/200V/300V
DC Current:200μA/2mA/20mA/200mA/10A
AC Current:2mA/20mA/200mA/10A
Resistance:200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
Signal Output:1kHz square wave
Diode:YES
Continuity:YES

Display: 3 1/2 digits LCD, with a max. reading of 1999
Sampling Rate: About 2 to 3 times/sec
Battery: 9V battery, 6F22 or equivalent, 1 piece
Size: 166 x 80 x 36.5mm
Weight: About 214g ( including battery )
IP Degree: IP20

Accessories
