Eastern Company Profile

OEM & ODM Manufacturer, ISO9001:2000 quality system certificate, 50 New products yearly.

Eastern is a High and new Technology Enterprise of Province Grade, which is specialize in research, manufacture and sales of measure & test instruments. It includes: Eastern Electronic, Eastern Intelligent Meter, Eastern Technology.

The company was set up in 1993. In its development of more than ten years, the business keeps going up rapidly. With the combined efforts of Eastern team, the company has become one of the leading manufacturers of instruments and meters recently. The main products contain Digital Multimeters, Metal Detectors, Ultrasonic Measures, Infrared testers, all of which have an advantage in domestic and overseas markets.

Concentrating preponderant resources and competitive advantage, Eastern Company bring in advanced technology and operation theory by setting up Research Center in Taiwan and cooperating with many overseas companies. Based on ISO9001 International Quality System, most products are exported to Europe and USA with approvals of CE, UL, GS, CMC.


Please contact us for price information | Sales Support | Phone: (86) 0596-2161 506 | Email: DF@e-sun.cn
model:

DM830/DT830B

GS/CE Certificated Portable Digital Multimeter

EM830/DT830B CE mark GS mark

GENERAL DESCRIPTION

DM830/DT830 series multimeters are pocket-sized 3 1/2-digit digital multimeters for measuring DC and AC voltage, DC current, resistance and diode. Some models also provide transistor test function, signal output, continuity test, battery test or temperature test. Overload protection and low battery indication are provided. Following table shows functions of different models.

FEATURES

SPECIFICATION

Voltage DC 200m/2000m/20/200/250V
Voltage AC 200/250V
Current DC 2000μ/20m/200m/10A
Resistance 200/2000/20k/200k/2000kΩ
Diode Check 2.8V/1mA
Battery Check 1.5V, 9V (Only for DM830)
Temperature 0°C ~ 1000°C/ 32°F ~ 1832°F (Only for DM830F)
Square Wave 1000Hz/50Hz (Only for DM830G)
Power source: 9V battery (6F22), or equivalent
Dimensions: 70×126×28 mm
Weight: 155g (with battery)
Accessories: Test Lead; Battery; Users Manual
Color available: Yellow, Black, *Customizable
Polarity Auto polarity indication

SAFETY INFORMATION

This multimeter has been designed according to IEC-61010 concerning electronic measuring instruments with a measurement category II (CAT II).


model:

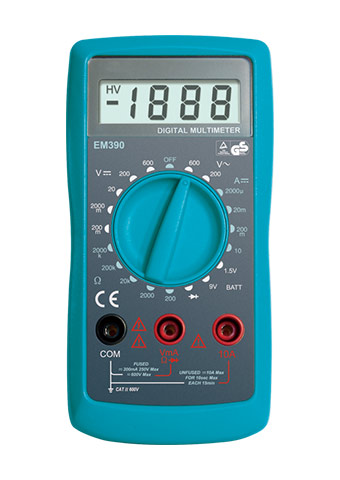

EM390

GS/CE Certificated Portable Digital Multimeter

EM390 CE mark GS mark

GENERAL DESCRIPTION

EM390 series multimeters are pocket-sized 3 1/2-digit digital multimeters for measuring DC and AC voltage, DC current, resistance and diode. Some models also provide transistor test function, signal output, continuity test, battery test or temperature test. Overload protection and low battery indication are provided. Following table shows functions of different models.

FEATURES

SPECIFICATION

Voltage DC 200m/2/20/200/250V
Voltage AC 200/250V
Current DC 20m/200m/10A
Resistance 200/2000/20k/200k/2000kΩ
Diode Check 2.8V/1mA
Battery Check 1.5V, 9V (Only for EM390)
Temperature 0°C ~ 1000°C/ 32°F ~ 1832°F (Only for EM392)
Square Wave 1000Hz/50Hz (Only for EM393)
Power source: 9V battery (6F22), or equivalent
Dimensions: 70×128×28 mm
Weight: 137g (with battery)
Accessories: Test Lead; Battery; Users Manual
Color available: Yellow, *Customizable
Polarity Auto polarity indication

SAFETY INFORMATION

This multimeter has been designed according to IEC-61010 concerning electronic measuring instruments with a measurement category II (CAT II).


model:

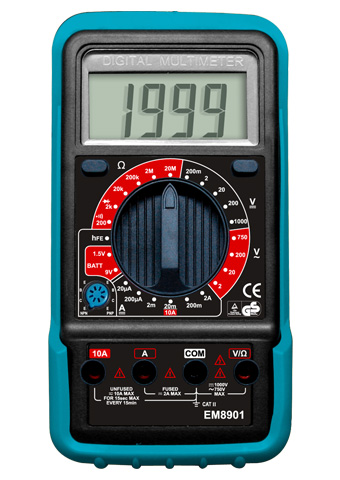

EM8900

GS/CE Certificated Digital Multimeter

EM8900EM8900 with HolsterCE mark GS mark

GENERAL DESCRIPTION

EM8900 This series digital multimeters are compact 3 1/2 digits digital multimeters for measuring DC and AC voltage, DC and AC current, resistance, diode, transistor, battery, temperature and continuity. They have the functions of polarity indication and overrange indication. It can be operated easily and is an ideal instrument for use in fields, laboratory, workshop and home applications.

FEATURES

SPECIFICATION

Voltage DC 200m/2/20/200/250V
Voltage AC 2/20/200/250V
Current DC 200μ/2m/20m/200m/10A
Current AC 2m/20m/200m/10A
Resistance 200/2k/20k/200k/2M/ 20MΩ
Diode Check 2.8V/1mA
Battery Check 1.5V, 9V
Power source: 9V battery (6F22), or equivalent
Dimensions: 85×165×32 mm
Weight: 220g (with battery)
Accessories: Test Lead; Battery; Holst; Users Manual
Color available: Black, *Customizable
Polarity Auto polarity indication

SAFETY INFORMATION

This multimeter has been designed according to IEC-61010 concerning electronic measuring instruments with a measurement category II (CAT II).
