Infrared Thermometers
(Temperature Sensors Measurement)


Eastern Company Profile

all-sun: OEM and ODM Manufacturer of test & measurement instruments in China

OEM & ODM Manufacturer, ISO9001:2000 quality system certificate, 50 New products yearly.

Eastern Company is a High and new Technology Enterprise of Province Grade, which is specialize in research, manufacture and sales of measure & test instruments. It includes: Eastern Electronic, Eastern Intelligent Meter, Eastern Technology.

The company was set up in 1993. In its development of more than ten years, the business keeps going up rapidly. With the combined efforts of Eastern team, the company has become one of the leading manufacturers of instruments and meters recently. The main products contain Digital Multimeters, Metal Detectors, Ultrasonic Measures, Infrared testers, all of which have an advantage in domestic and overseas markets.

Concentrating preponderant resources and competitive advantage, Eastern Company bring in advanced technology and operation theory by setting up Research Center in Taiwan and cooperating with many overseas companies. Based on ISO9001 International Quality System, most products are exported to Europe and USA with approvals of CE, UL, GS, CMC.


Please contact us for price information | Sales Support | Phone: (86) 0596-2161 506 | Email: DF@e-sun.cn

Thermometers Series Product models: EM520A(320°C), EM520B(520°C), EM528(High Temp.), ETP109A(Probe)

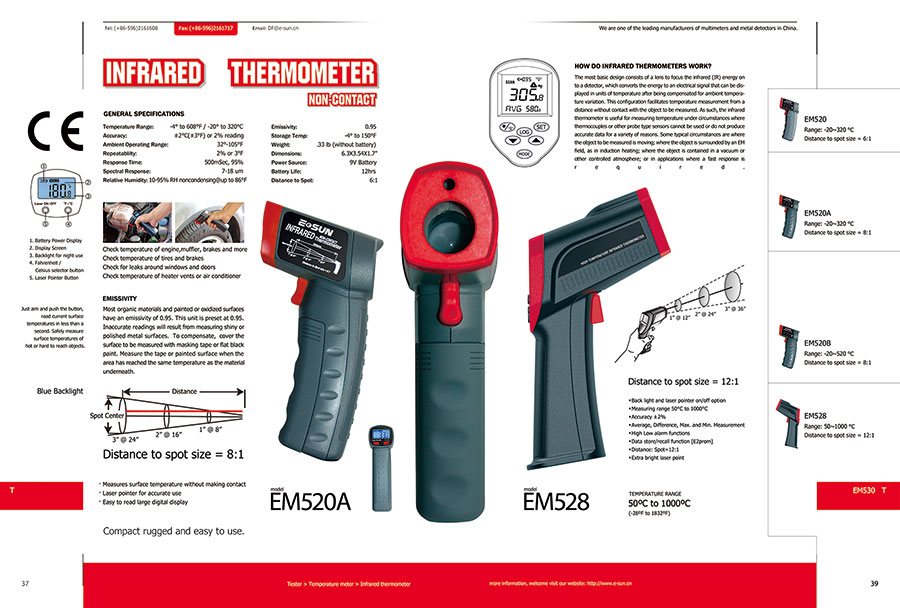

EM520A, 320°CLaser Infrared Thermometer, Non-contact, Gun Type IR

Picture of EM520B, Infrared Thermometer, 520°C Gun Type IR

EM520A SPECIFICATION

Range -20°C to 320°C / -4°F to 968°F
D:S (Distance to spot size) 8:1
Accuracy ±2°C / ±3°F or 2% reading
Battery / Power source 9V 6F22, one piece
Size / Dimensions 90×155×45 mm
Weight about 150g (with battery)
Accessories: Battery; Users Manual; Hand Strap; Canvas Holster (optional)

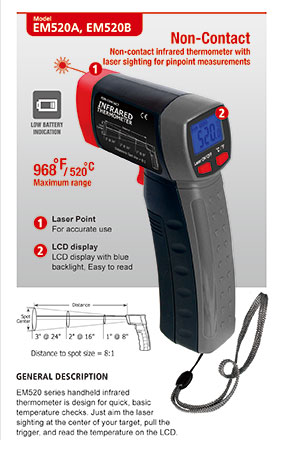

EM520B, 520°C Laser Infrared Thermometer, Non-contact, Gun Type IR

EM520B Non-contact Infrared Thermometers

It’s not easy going through life as a curious sort, but it does have its benefits. A few years ago, I discovered a gadget that would display the temperature of a remote object merely by pointing at its surface and pulling a trigger. OK, this is good. I was hooked. Unfortunately, this was before Tanga, so I had to fork over a truckload of cash to have this wonderous device.

The first few days of ownership go something like this. You will measure the temperature of everything and everyone you know. Soon you will know important facts, like the difference in temperature between your foot and your hand, and the temperature of your wife’s forehead and other body parts.

After you settle in, you’ll find this modern miracle to be an indispensible tool for diagnosis and troubleshooting. I used this swell gadget to identify cooling problems with my car, and to diagnose a water temperature issue at home. The possiblities are endless.

Of course, McDonalds could have saved millions had they used this to measure the temperature of their coffee before they were sued. I can’t guarantee that you’ll save millions if you own one of these, but you never know.

EM520B SPECIFICATION

Range -20°C to 520°C / -4°F to 968°F
D:S (Distance to spot size) 8:1
Accuracy ±2°C / ±3°F or 2% reading
Battery / Power source 9V 6F22, one piece
Size / Dimensions / Weight 90×155×45 mm / about 150g (with battery)
Accessories Battery; Users Manual; Hand Strap; Canvas Holster (optional)

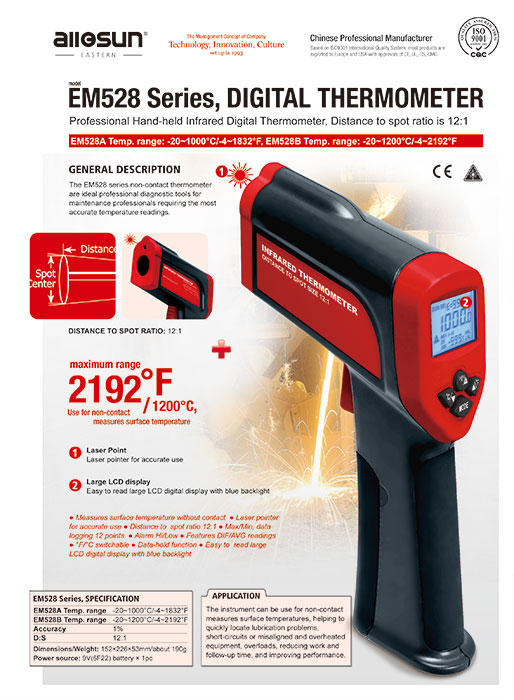

EM528, 1000°C High Temperature Infrared Thermometers, Non-contact, Gun Type

EM528 Non-contact 1200°C Infrared Thermometers

EM528 SPECIFICATION

Range -20°C to 1200°C / -4°F to 2192°F
D:S (Distance to spot size) 12:1
Accuracy ±2°C / ±3°F or 2% reading

Accessories: Battery; Users Manual; Hand Strap; Canvas Holster (optional)

camera, Temperatur-Sensor, test instruments, Prüfgeräte, non-destructive process control, temperature in industrial processing, Thermalert, ir thermometer, radiation thermometer, infrared pyrometer, infrared detector, hand held infrared thermometer, hand held thermometer, portable infrared thermometer, fiber optic infrared thermometer, ratio infrared thermometer, two color infrared thermometer, two color thermometer, 2-color thermometers, infrared ratio thermometer, temperature measurement, noncontact temperature measurement, line scanner, calibration

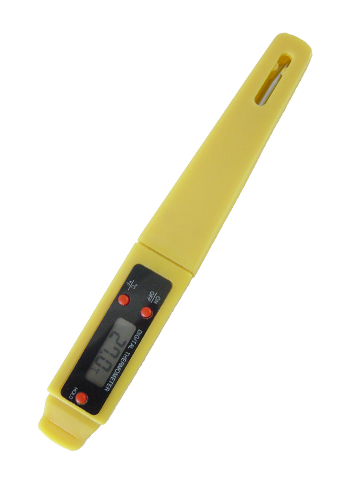

ETP109A, 300°C High Precision Probe Digital Thermometer

ETP109A Digital Temperature Sensors Measurement

This unit is a high precision electronic probe thermometer, capable of measuring the value of Celsius degree/Fahrenheit degree and holding the test datum, used for reference in industry, laboratory, food temperature test and monitor, as well as cooking (such as to check out the temperature of boiled food, infant milk and so on ).

SPECIFICATION
Model: ETP109,
Temperature range:-10 to 125°C/-58 to 257°F,
Accuracy:±1°C(0~80°C)/±2°C(Other)

Model: ETP109A
Temperature range:-10 to 300°C/-58 to 572°F,
Accuracy:±1°C(0~80°C)/±2°C(Other)

Power:1.5V (LR44/AG13)
Dimensions(W×L×T):20×150×16 mm
Weight:23g (with battery

Accessories: Battery; Users Manual

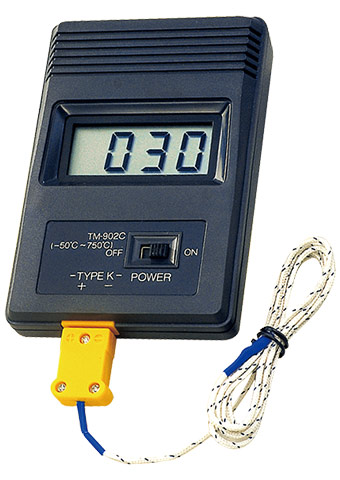

Picture of TM902C, K type Digital Thermometer

TM902C, K type Digital Thermometer

Model: TM902C

Temperature Range:-50°C to 750°C, Accuracy:±(3%+1°C )
Power:9V battery (6F22) , Dimensions(W×L×T):70×105×20 mm, Weight:120g (with battery)

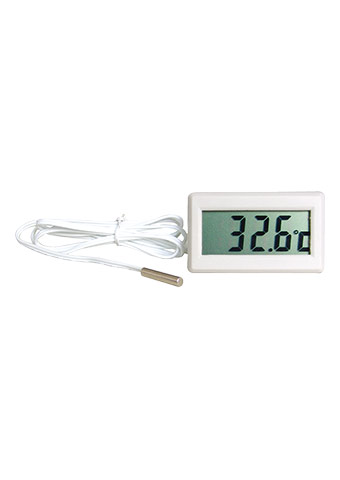

Picture of ETP104A, 70°C Digital Thermometer Module

ETP104A, 70°C Digital Thermometer Module

Model: ETP104A

This temperature module can be mounted in any wall or grandfather clock or any front panel or in all kinds of furniture. Can be used in the refrigerator, the goldfish jar, the freezer, etc.

Temperature Range:-20°C to 70°C, Accuracy:±1.5°C

Picture of EM502C, Digital Thermometer

EM502C, Digital Thermometer

Model: EM502C

Temperature Range:-50°C to 300°C / -58°F~572°F, Accuracy:0.1°C (0.1°F)
Power:1.5V (AAA) × 2, Dimensions(W×L×T):92×320×25 mm, Weight:250g (with battery)


INTRODUCTION

Infrared thermometers measure temperature using blackbody radiation (generally infrared) emitted from objects. They are sometimes called laser thermometers if a laser is used to help aim the thermometer, or non-contact thermometers to describe the device’s ability to measure temperature from a distance. By knowing the amount of infrared energy emitted by the object and its emissivity, the object's temperature can be determined.

The most basic design consists of a lens to focus the infrared energy on to a detector, which converts the energy to an electrical signal that can be displayed in units of temperature after being compensated for ambient temperature variation. This configuration facilitates temperature measurement from a distance without contact with the object to be measured. As such, the infrared thermometer is useful for measuring temperature under circumstances where thermocouples or other probe type sensors cannot be used or do not produce accurate data for a variety of reasons.

Some typical circumstances are where the object to be measured is moving; where the object is surrounded by an electromagnetic field, as in induction heating; where the object is contained in a vacuum or other controlled atmosphere; or in applications where a fast response is required.

Infrared thermometers can be used to serve a wide variety of temperature monitoring functions. A few examples provided to this article include:

There are many varieties of infrared temperature sensing devices available today, including configurations designed for flexible and portable handheld use, as well many designed for mounting in a fixed position to serve a dedicated purpose for long periods.

Specifications of portable handheld sensors available to the home user will include ratings of temperature accuracy (usually plus or minus a degree or two) and other parameters. The distance-to-spot ratio (D:S) is the ratio of the distance to the object and the diameter of the temperature measurement area. For instance if the D:S ratio is 12:1, measurement of an object 12 inches away will average the temperature over a 1-inch diameter area. The sensor may have an adjustable emissivity setting, which can be set to measure the temperature of reflective (shiny) and non-reflective surfaces. A non-adjustable thermometer can be used to measure the temperature of a shiny surface by applying a non-shiny paint or tape to the surface.

infrared temperature measurement, infrared thermometers, infrared sensor, IR sensor, ir pyrometer, temperature line scanner, infrared line scanner, process imager, thermal imaging systems, noncontact temperature sensors, industrial temperature measurement, thermograph, Infrarot-Sensor, non-contact temperature, noncontact thermometers, berührungslos, pyrometer, detector, Detektor, emissivity, Emissionsgrad, IR, ir, Marathon, noncontact thermometer, berührungslos messendes Thermometer, temperature sensor, température, infrarouge, thermomètre,

Introduction to Infrared Thermometers

How do infrared thermometers work?

The most basic design consists of a lens to focus the infrared (IR) energy on to a detector, which converts the energy to an electrical signal that can be displayed in units of temperature after being compensated for ambient temperature variation. This configuration facilitates temperature measurement from a distance without contact with the object to be measured. As such, the infrared thermometer is useful for measuring temperature under circumstances where thermocouples or other probe type sensors cannot be used or do not produce accurate data for a variety of reasons. Some typical circumstances are where the object to be measured is moving; where the object is surrounded by an EM field, as in induction heating; where the object is contained in a vacuum or other controlled atmosphere; or in applications where a fast response is required.

The most usual infrared thermometer is the

Related equipment, although not strictly thermometers, are:

Infrared Thermometer Types
