Eastern is a High and new Technology Enterprise of Province Grade, which is specialize in research, manufacture and sales of measure & test instruments. It includes: Eastern Electronic, Eastern Intelligent Meter, Eastern Technology.
The company was set up in 1993. In its development of more than ten years, the business keeps going up rapidly. With the combined efforts of Eastern team, the company has become one of the leading manufacturers of instruments and meters recently. The main products contain Digital Multimeters, Metal Detectors, Ultrasonic Measures, Infrared testers, all of which have an advantage in domestic and overseas markets.
Concentrating preponderant resources and competitive advantage, Eastern Company bring in advanced technology and operation theory by setting up Research Center in Taiwan and cooperating with many overseas companies. Based on ISO9001 International Quality System, most products are exported to Europe and USA with approvals of CE, UL, GS, CMC.
DM830/DT830 series multimeters are pocket-sized 3 1/2-digit digital multimeters for measuring DC and AC voltage, DC current, resistance and diode. Some models also provide transistor test function, signal output, continuity test, battery test or temperature test. Overload protection and low battery indication are provided. Following table shows functions of different models.
| Voltage DC | 200m/2000m/20/200/250V |
| Voltage AC | 200/250V |
| Current DC | 2000μ/20m/200m/10A |
| Resistance | 200/2000/20k/200k/2000kΩ |
| Diode Check | 2.8V/1mA |
| Battery Check | 1.5V, 9V (Only for DM830) |
| Temperature | 0°C ~ 1000°C/ 32°F ~ 1832°F (Only for DM830F) |
| Square Wave | 1000Hz/50Hz (Only for DM830G) |
| Power source: | 9V battery (6F22), or equivalent |
| Dimensions: | 70×126×28 mm |
| Weight: | 155g (with battery) |
| Accessories: | Test Lead; Battery; Users Manual |
| Color available: | Yellow, Black, *Customizable |
| Polarity | Auto polarity indication |
This multimeter has been designed according to IEC-61010 concerning electronic measuring instruments with a measurement category II (CAT II).
model:

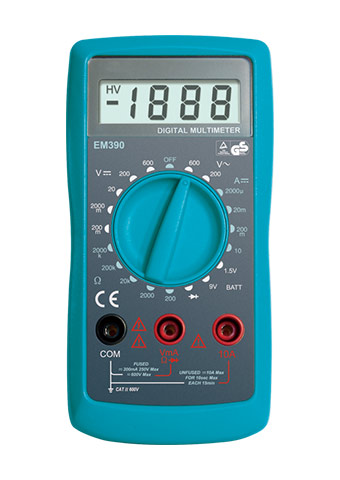

EM390 series multimeters are pocket-sized 3 1/2-digit digital multimeters for measuring DC and AC voltage, DC current, resistance and diode. Some models also provide transistor test function, signal output, continuity test, battery test or temperature test. Overload protection and low battery indication are provided. Following table shows functions of different models.
| Voltage DC | 200m/2/20/200/250V |
| Voltage AC | 200/250V |
| Current DC | 20m/200m/10A |
| Resistance | 200/2000/20k/200k/2000kΩ |
| Diode Check | 2.8V/1mA |
| Battery Check | 1.5V, 9V (Only for EM390) |
| Temperature | 0°C ~ 1000°C/ 32°F ~ 1832°F (Only for EM392) |
| Square Wave | 1000Hz/50Hz (Only for EM393) |
| Power source: | 9V battery (6F22), or equivalent |
| Dimensions: | 70×128×28 mm |
| Weight: | 137g (with battery) |
| Accessories: | Test Lead; Battery; Users Manual |
| Color available: | Yellow, *Customizable |
| Polarity | Auto polarity indication |
This multimeter has been designed according to IEC-61010 concerning electronic measuring instruments with a measurement category II (CAT II).
model:

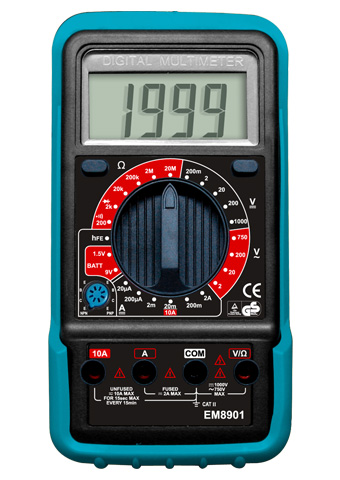

EM8900 This series digital multimeters are compact 3 1/2 digits digital multimeters for measuring DC and AC voltage, DC and AC current, resistance, diode, transistor, battery, temperature and continuity. They have the functions of polarity indication and overrange indication. It can be operated easily and is an ideal instrument for use in fields, laboratory, workshop and home applications.
| Voltage DC | 200m/2/20/200/250V |
| Voltage AC | 2/20/200/250V |
| Current DC | 200μ/2m/20m/200m/10A |
| Current AC | 2m/20m/200m/10A |
| Resistance | 200/2k/20k/200k/2M/ 20MΩ |
| Diode Check | 2.8V/1mA |
| Battery Check | 1.5V, 9V |
| Power source: | 9V battery (6F22), or equivalent |
| Dimensions: | 85×165×32 mm |
| Weight: | 220g (with battery) |
| Accessories: | Test Lead; Battery; Holst; Users Manual |
| Color available: | Black, *Customizable |
| Polarity | Auto polarity indication |
This multimeter has been designed according to IEC-61010 concerning electronic measuring instruments with a measurement category II (CAT II).
