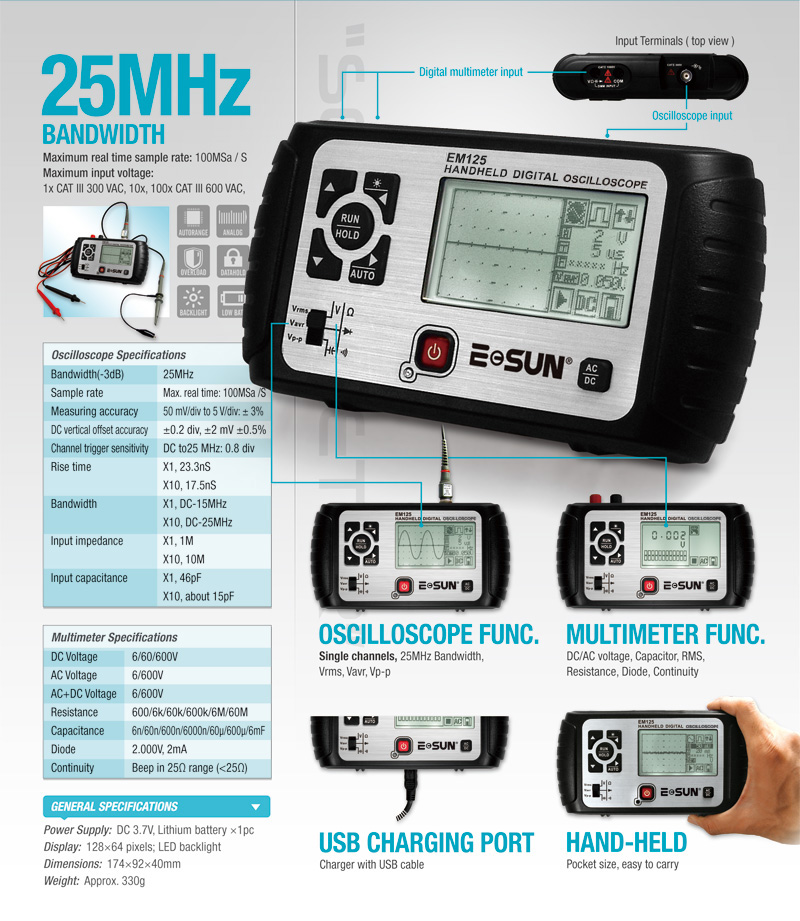

Picture of all-sun EM125
Model:

EM125

MINI OSCILLOSCOPE HANDHELD DIGITAL SCOPEMETER POCK Features

MINI OSCILLOSCOPE HANDHELD DIGITAL SCOPEMETER POCKET-SIZE

Specification of scopemeter:

  • Bandwidth(-3dB): 25MHz
  • Sample: Max sample:100MSa/S
  • Channel: 1
  • Couple: AC, DC
  • Rising time: < 17.5 nS
  • Input independence: 1MΩ,≤20pF
  • Max input voltage: 1x CAT III 300 VAC 10x, 100x CAT III 600 VAC
  • Vertical resolution: 8bit
  • Vertical sensitive: 50mV/div-20V/div
  • Horizontal resolution: 10nS/div
  • Horizontal sensitive: 10nS/div -5S/div
  • Depth-sampling: 0.1K/Channel
  • Trigger mode: AUTO, Rising edge, falling edge

Fundmental specification:

  • Screen size: 128(horizontal)×64(vertical);backlight:LED
  • Battery: 3.7V Lithium battery 1200mAH
  • charger: Input:100VAC-240VAC
  • Output:5V±10%DC 1000mA
  • size: 174*92*40mm
  • wheight: 330g(host machine)

Specification of multimeter:

  • Measure count: 6000
  • Input: Max input voltage:600 Vrms CAT II, 300 Vrms CAT III
  • On resistance: 25Ω(at the range of 600Ω), if less it beep
  • Diode measure: >2V shows OL(overload) <0.25 beep
  • Capacity measure: 6.000nF- 6mF 7range
  • Resistance measure: 600.0Ω- 60.00MΩ 6range
  • Voltage measure: 6V- 600V 3 range

Specifications

Voltage:
DC Voltage 6.000 V   0.5 ±8
60.00 V  0.5 ±8
600.0 V  0.5 ±8
AC Voltage 6.000 V – 600.0 V 40 Hz – 400Hz 1.0 ±10
400Hz – 2 kHz 3.0 ±10
AC+DC Voltage 6.000 V – 600.0 V 40 Hz – 400Hz 1.0 ±10
400Hz – 2 kHz 3.0 ±10
Resistance:
600.0Ω1.0 ±5
6.000 KΩ1.0 ±5
60.00 kΩ1.0 ±5
600.0 kΩ1.0 ±5
6.000 MΩ1.0 ±5
60.00 MΩ2.0 ±5
Capacitance:
6.000 nF3.0 ±8
60.00 nF3.0 ±8
600.0 nF3.0 ±8
6000 nF3.0 ±8
60.00 uF3.0 ±8
600.0 uF3.0 ±8
6.000 mF3.0 ±8

Accessories
