FEATURES
● Autoranging
● Dual LCD display for simultaneous measurement of Current and Voltage, Current and Resistance, Current and Temperature, and etc
● Lock the maximum value of ACA
● 3 1/2-digit for clamp function
● 3 3/4-digit for DMM function
● Data-hold mode
● Easy single switch for any function selection
● Auto power off
● Low power indicator
● CAT III, overload protecti

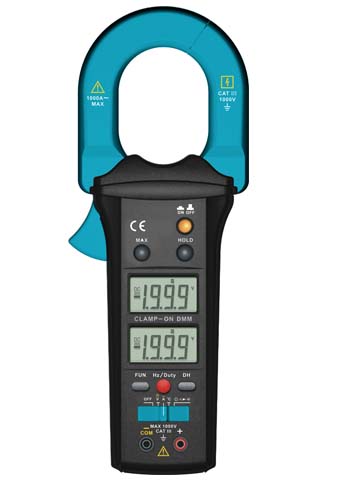

EM467A SPECIFICATION
Current AC (Clamp-on): EM467A: 200/1000A
Current DC mA: 40m/400mA
Current AC mA: 40m/400mA, Frequency: 40~400Hz
Voltage DC: 400m/4/40/400/600V
Voltage AC: 4/40/400/600V
Resistance: 400/4k/40k/40M/40MΩ
Capacitance: 4n/40n/400n/4μ/40μ/100μF
Temperature: -20~1000°C
Continuity: Less than about 30Ω
Diode Check: 2V/0.6mA
Power Supply: 9V(6F22) battery ×1pc
Dimensions: 260×101×41mm
Weight: Approx. 360g (Without battery)
