[2008 catalog C] [Page 22]
CE
Test the concentration of the battery fluids, antifreeze liquid and cleaning fluids.

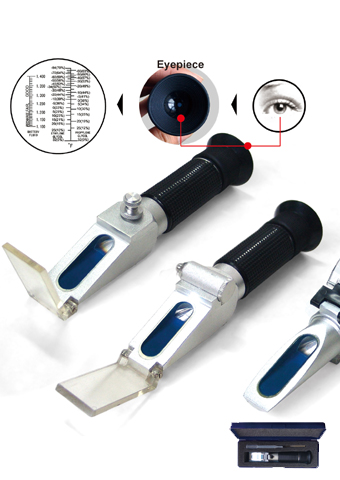

GENERAL DESCRIPTION
The EM2230 series are designed to test the concentration of the battery fluids, antifreeze
liquid and cleaning fluids. With the indication of the percentage you may know at which
temperature the fluid will be frozen for both propylene glycol and ethylene glycol. It can also
be used for checking the strength of electrolyte solution batteries.
Remarks: in the following firms, E, P, B and C respectively refer to ethylene Glycol, Propylene
Glycol, Battery and Cleaning Fluids.
EM2230A, EM2230AATC:
E: -84~32°F, P: -60~32°F, B: 1.100~1.400sg
EM2230B, EM2230BATC:
E: -60~0°C, P: -50~0°C, B: 1.100~1.400sg
EM2230C: E: -60~32°F, P: -50~32°F, B: 1.15~1.30sg
EM2230D: E: -50~0°C, P: -50~0°C, C: -40~0°C, B: 1.15~1.30sg
EM2230E: E: -90~32°F, E: -70~0°F, P: -70~32°F, P: -60~0°F, B: 1.100~1.400sg
EM2230F: E: -50~0°C, P: -50~0°C, C: -40~0°C, B: 1.100~1.400sg
