[2008 catalog C] [Page 29]
CE
It can measure leakage current to several milliamperes.
GENERAL DESCRIPTION

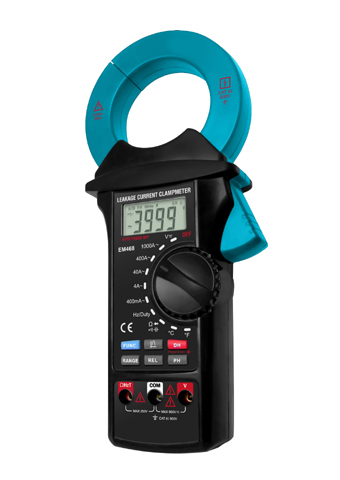

EM468 is a 4000 count, 3 3/4-digit multifunctional autorange digital leakage current clamp meter. It can
measure ac current up to 1000A, and measure leakage current to several milliamperes. When measuring current,
you can select frequency range or peak measurement.
FEATURE
Frequency measurement of voltage
input or current input
Data-hold funciton
Relative measurement
Manual range/Autorange
Peak hold (only for AC current )
Frequency range selection (40-1kHz or
50-60Hz,only for AC current )
Voltage DC:400m/4/40/400/600V
Voltage AC:4/40/400/600V
Current AC:400m/4/40/400/1000A(40~1kHz)
W:400/4k/40k/400k/4M/40MΩ
Capacitance:50n/500n/5μ/50μ/100μF
Frequency:5/50/500/5k/50k/500kHz(voltage)
50/500/5kHz(current)
Duty Cycle:5%~95%
Temperature:-20~750°C/-4~1382°F
Diode Check:YES
Continuity:YES
