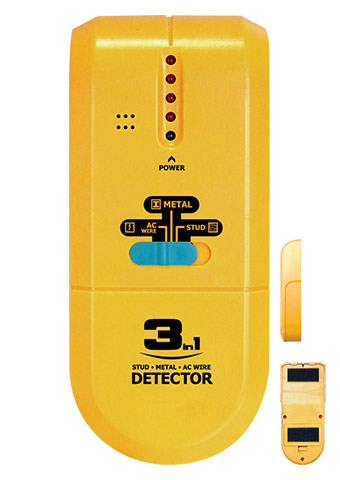

This unit is an advanced detector. It can be used in construction, fitment, carpentry, etc.
·Find the stud center, find wood and metal studs, AC scanning to trace hot wire.
·Metal scanning for finding nail, pipe, rebar, and other hidden metallic object.
Signal indication
When detects an edge of object,
the top signal LED lights as an indicator.
Spotlight & groove
When detects an object, the spotlight appears
and mark in the groove position.
CE
Detection depth
Stud mode:Wood stud of 30×30mm ≤18mm
Metal mode:Iron pipe of ?25mm ≤30mm
AC mode:50mm for 90~250V at 50~60Hz
Power:9V battery (6F22)
Dimensions(W×L×T):66×150×32 mm
Weight:165g (with battery)
Battery; Users Manual; Hand Strap
