DT266 Series|Digital Clamp Meters

ETL marking, 266 Digital Clamp Meter

- US ETL LISTED Marking -
US ETL LISTED marking, ETL certification, ETL approval, US directive and standards

  PRODUCT CATALOG



About DT266 Series

Common Function:
3 1/2 digits LCD, Max. reading 1999;
Data-Hold Function;
Low battery indication;
Plug-in insulation tester adapter 500VDC;
DCA+ACV+ACA+OHM;

ACCESSORIES:
Test lead;9V Battery(AA);
Carrying case;
Users Manual;

Download DT266 PDF Manual

Multimeter color:olive-drab/Black

Packing:
Please contact us
DT266 Series Digital Clamp Meters

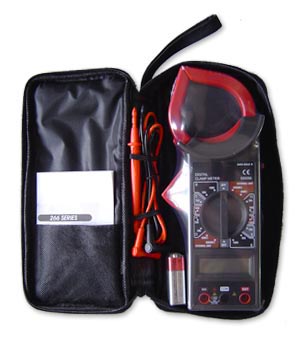

About EM266 Series

(a variation in exterior for DT266)
Common Function:
3 1/2 digits LCD, Max. reading 1999;
Data-Hold Function;
Low battery indication;
Plug-in insulation tester adapter 500VDC;
DCA+ACV+ACA+OHM;

ACCESSORIES:
Test lead;9V Battery(AA);
Carrying case;
Users Manual;

Multimeter color:olive-drab/Black
DT266 Series Digital Clamp Meters

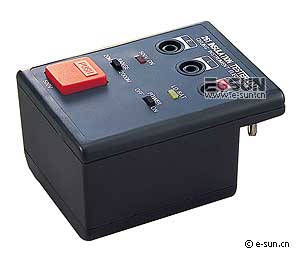

DT261

Plug-in insulation tester for 266 siries clamp meters
Rated voltage:500VDC
OHM:20M 2000MΩ
Size/weight:90×70×35mm/130g
DT266 Series Digital Clamp Meters

EM266

EM266

Function Measuring Range
Voltage DC
1000V
Voltage AC 750V
Current AC 200-1000A
Resistance 200-20kΩ
External unit
(with DT261)
20M-2000MΩ

EM266C/EM266C+

EM266C/EM266C+

Function Measuring Range
Voltage DC
200m/2/20/200/1000V
Voltage AC 200/750V
Current AC 20/200/1000A
Resistance 200/20k/2MΩ
External unit
(with DT261)
20M-2000MΩ
Temperature 0°C ~ 750°C / 32°F ~ 1400°F
Continuity Yes

EM266F

EM266F

Function Measuring Range
Voltage DC
2/20/200/1000V
Voltage AC 200/750V
Current AC 200/1000A
Resistance 200/2k/20k/2MΩ
External unit
(with DT261)
20M-2000MΩ
Frequency 2kHz
Continuity Yes
Diode Check Yes

EM266C/EM266FT

EM266FT

Function Measuring Range
Voltage DC
200m/20/1000V
Voltage AC 200m/20/750V
Current AC 20/200/1000A
Resistance 2k/20kΩ
External unit
(with DT261)
20M-2000MΩ
Frequency 2kHz
Temperature 0°C ~ 750°C / 32°F ~ 1400°F

EM266D

EM266D

Function Measuring Range
Voltage DC
200m/20/200/1000V
Voltage AC 200/750V
Current AC 20/200/1000A
Resistance 200/2k/20k/200k/20kΩ
External unit
(with DT261)
20M-2000MΩ
Diode Check Yes

Contact us | E-mail: DF@e-sun.cn


DT266

Feature & Specification

·3 1/2 digits LCD,Max.reading 1999
·6 Functions,8 Ranges
·Data-hold function
·Low battery indication
·Overload protection
·Audible continuity
·Plug-in insulation tester adapter 500VDC
Function Measuring Range Accuray
DCV
1000V ±0.8%
ACV 750V ±1.2%
ACA 200-1000A ±2.5%
OHM 200-20kΩ ±1.0%
20M-2000MΩ ±4.0%
Size/Weight 230×70×37mm/310g



DT266+

Feature & Specification

·3 1/2 digits LCD,Max.reading 1999
·6 Functions,8 Ranges
·Data-hold function
·Low battery indication
·Overload protection
·Audible continuity
·Plug-in insulation tester adapter 500VDC
Function Measuring Range Accuray
DCV
1000V ±0.8%
ACV 750V ±1.2%
ACA 200-1000A ±2.5%
OHM 200-20kΩ ±1.0%
20M-2000MΩ ±4.0%
Size/Weight 230×70×37mm/310g



DT266C

Feature & Specification

·3 1/2 digits LCD,Max.reading 1999
·6 Functions,17 Ranges
·Data-hold function
·Temperature measurement
·Low battery indication
·Plug-in insulation tester adapter 500VDC
Function Measuring Range Accuray
DCV
200m-2-20-200-1000V ±0.8%
ACV 200-750V
±1.2%
ACA 20-200-1000A
±2.5%
OHM 200-20kΩ ±1.0%
20M-2000MΩ ±4.0%
TEMP -40°C~1400°C
±3.0%
Size/Weight 230×70×37mm/310g



DT266C+

Feature & Specification

·3 1/2 digits LCD,Max.reading 1999
·6 Functions,17 Ranges
·Data-hold function
·Temperature measurement
·Low battery indication
·Audible continuity
·Plug-in insulation tester adapter 500VDC
Function Measuring Range Accuray
DCV
200m-2-20-200-1000V ±0.8%
ACV 200-750V
±1.2%
ACA 20-200-1000A
±2.5%
OHM 200-20k-2MΩ ±1.0%
20M-2000MΩ ±4.0%
TEMP -40°C~1400°C
±3.0%
Size/Weight 230×70×37mm/310g



DT266F

Feature & Specification

·3 1/2 digits LCD,Max.reading 1999
·8 Functions,17 Ranges
·Data-hold function
·Frequency measurement
·Low battery indication
·Audible continuity
·Plug-in insulation tester adapter 500VDC
Function Measuring Range Accuray
DCV
2-20-200-1000V ±0.8%
ACV 200-750V
±1.2%
ACA 200-1000A
±2.5%
OHM 200-2k-20k-200k-2MΩ ±1.0%
20M-2000MΩ ±4.0%
FREQ 2kHz
±1.5%
Size/Weight 230×70×37mm/310g



DT266FT

Feature & Specification

·3 1/2 digits LCD,Max.reading 1999
·9 Functions,17 Ranges
·Data-hold function
·Frequency measurement
·Temperature measurement
·Low battery indication
·Audible continuity
·Plug-in insulation tester adapter 500VDC
Function Measuring Range Accuray
DCV
200m-20-1000V ±0.8%
ACV 200m-20-750V
±1.2%
ACA 20-200-1000A
±2.5%
OHM 2000-20kΩ ±1.0%
20M-2000MΩ ±4.0%
FREQ 20MHz
±1.5%
TEMP -40°C~1400°C
±3.0%
Size/Weight 230×70×37mm/310g



DT260D

Feature & Specification

·3 1/2 digits LCD,Max.reading 1999
·7 Functions,17 Ranges
·Data-hold function
·Max.current during a certain process
·Low battery indication
·Plug-in insulation tester adapter 500VDC
Function Measuring Range Accuray
DCV
200m-2-20-200-1000V ±0.8%
ACV 200-750V
±1.2%
ACA 20-200-1000A
±2.5%
OHM 200-2k-20k-200k-2MΩ ±1.0%
20M-2000MΩ ±4.0%
Diode Check 2.8V / 1mA
Size/Weight 230×70×37mm/310g
