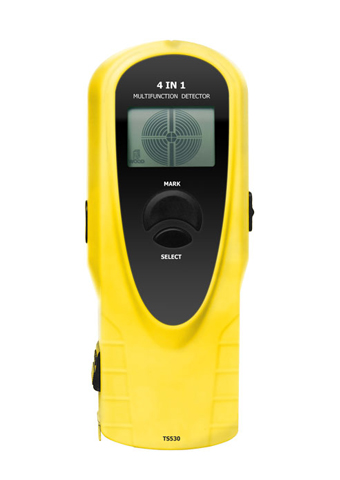

This unit is an advanced detector. It can detect and locate metal, AC voltage and stud. In addition. It can be used in construction, fitment, etc.
·LCD and sound signal indicate findings
·2 meter measure tape inside
·Pencil slider, pencil hole
Whole alarm icon
When detects an edge of object,
the icon appears as an indicator.
Spotlight & groovePress
When detects an object, the spotlight appears
and mark in the groove position.
Mark button
Press this button to mark dots on the wall surface
Detection depth
Stud mode:Wood stud of 30×30mm ≤18mm
Metal mode:Iron pipe of ?25mm ≤30mm
AC mode:50mm for 90~250V at 50~60Hz
Power:9V battery (6F22)
Dimensions(W×L×T):73×180×32 mm
Weight:213g (with battery)
Battery; Users Manual; Hand Strap
