Model: EM266
- US ETL LISTED Marking -
US ETL LISTED marking, ETL certification, ETL approval, US directive and standards
[2007 catalog B] [Page 37]
·3 1/2 digits LCD,Max.reading 1999
·Data-hold function
·Max.current during a certain process
·Low battery indication
·Overload protection
·Audible continuity
CAT II
The instrument complies with CAT II 1000
CE
|
Model: EM5510
- US ETL LISTED Marking -
US ETL LISTED marking, ETL certification, ETL approval, US directive and standards
EM5510 autorange backlight DMM combines a high accuracy 3 3/4 digits digital multimeter.
CATII
/ CE
5in1 Humidity, Temperature,Sound Level, Light, DMM
Power:9V battery (6F22)
Dimensions(W×L×T):83×162×47 mm
Weight:310g (with battery)
|
Model: GK7
This tester is designed to have no serviceable parts and is maintenance free. Periodically wipe the tester with a soft damp cloth and mild household cleaner. Do not use abrasives of solvens. Ensure that no water gets inside the equipment to prevent possible shorts and damage.
NON CONTACT
CAT III
The instrument complies with CAT III 1000.
|
Model: EM420A
- US ETL LISTED Marking -
US ETL LISTED marking, ETL certification, ETL approval, US directive and standards
CAT II / CE
Auto Range
·3 1/2 digits LCD.Max.reading 1999, backlight
·Auto/manual range selection
·Data-hold function
·Auto Range, Auto power off
·With clamp
Power:1.5V(AAA) × 3
Dimensions(W×L×T):75×158×35 mm
Weight:200g (with battery)
|

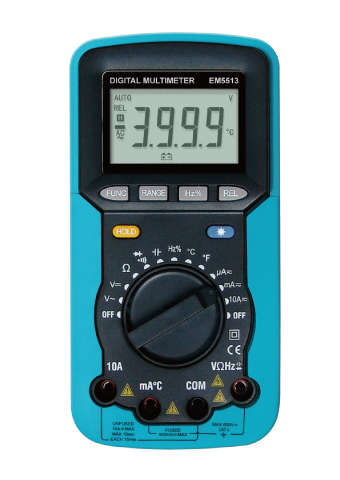

Model: EM5513
- US ETL LISTED Marking -
US ETL LISTED marking, ETL certification, ETL approval, US directive and standards
|
Model: EM495
- US ETL LISTED Marking -
US ETL LISTED marking, ETL certification, ETL approval, US directive and standards
This meter has been designed according to IEC-61010 concerning electronic measuring instruments with a measurement category (CAT II 600V) and pollution degree 2.
● 3 1/2 digits LCD display, Max.reading 1999
● Automatic polarity indication
● Overload protection
● Low battery indication
CE Certification
|
Model: EM9807
- US ETL LISTED Marking -
US ETL LISTED marking, ETL certification, ETL approval, US directive and standards
EM9807 Socket Tester can be used to determine whether socket wiring is correct or incorrect. It is equipped with an additional RCD tester for testing the operation of RCD whose rating is not more than 30mA.
|

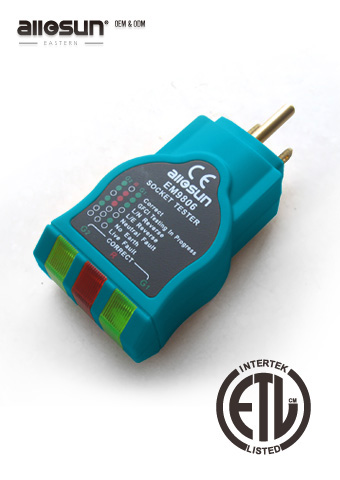

Model: EM9806
- US ETL LISTED Marking -
US ETL LISTED marking, ETL certification, ETL approval, US directive and standards
EM9806 Socket Tester can be used to determine whether socket wiring is correct or incorrect.
|

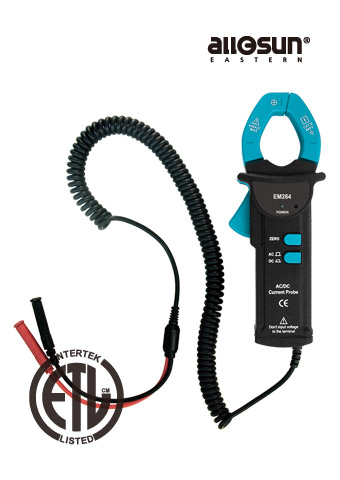

Model: EM264
- US ETL LISTED Marking -
US ETL LISTED marking, ETL certification, ETL approval, US directive and standards
The AC/DC Current Probe is based on Hall Effect technology and is designed to be used in conjunction with multimeter for ac and dc current measurements. The accessory together with all digital multimeter. EM263: Measure ACA 600A Max., EM264: Measure ACA/DCA 400A Max.
|
Model: EM305A
- US ETL LISTED Marking -
US ETL LISTED marking, ETL certification, ETL approval, US directive and standards
FEATURES
● 3 1/2-digit LCD, with a
● max. reading of 1999
● Autoranging
● IEC-61010 CATIII, Overload protection
● Data-hold function
● Zeroing function
|
Model: EM5511
- US ETL LISTED Marking -
US ETL LISTED marking, ETL certification, ETL approval, US directive and standards
[2007 catalog B] [Page 5]
CAT II / CE
EMF 400/4000mG
·LCD display. Max reading 3999
·Backlight
·Data-hold function
·Auto power off
·Autorange
Voltage DC:0.4/4/40/400/600V
Voltage AC:4/40/400/600V
Current DC:400μ/4000μ/40m/400m/10A
Current AC:400μ/4000μ/40m/400m/10A
Resistance:400/4K/40K/400K/4MΩ/40MΩ
Capacitance:4n/40n/400n/4μ/40μ/100μF
Frequency:10/100/1K/10K/100KHz
Temperature:-20-1000?C
EMF:400mG/4000mG
Continuity:Yes
Diode Check:Yes
Power:9V battery (6F22)
Dimensions(W×L×T):83×162×47 mm
Weight:310g (with battery)
|
Model: EM3215
- US ETL LISTED Marking -
US ETL LISTED marking, ETL certification, ETL approval, US directive and standards
EM3215 instrument is a compact 3 1/2 digit auto range digital multimeter for measuring DC and AC voltage,DC and AC current,resistance,deode and continuity.They have the functions of autozroing,polarity selection,datahold,overrange indication,auto power-off,and spotlight.They can be operated easily and be ideal instruments for use in fields,laboratory,workshop and home applications.
Logic test
Design for test logic level (TTL)
CAT II
The instrument complies with CAT II 600
Flashlight
It is used for illumination
CE
|
Model: M300
- US ETL LISTED Marking -
US ETL LISTED marking, ETL certification, ETL approval, US directive and standards
[2007 catalog B] [Page 31]
·3 1/2 digits LCD, Max. reading 1999
·Low battery indication
·Overload protection
·Audible continuity
CAT II
CE
|
